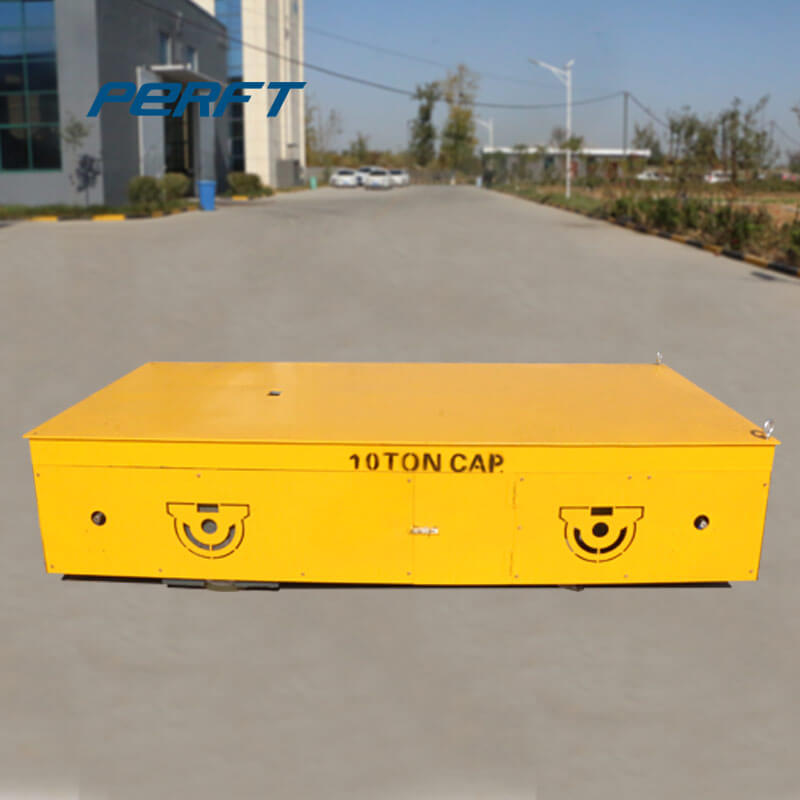

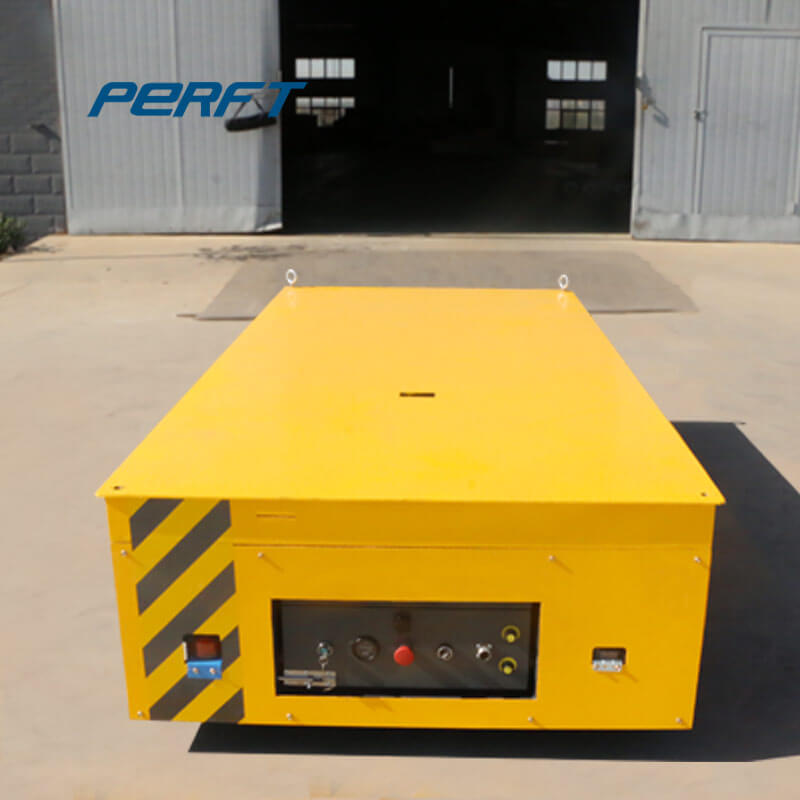

Four Wheel Steering Trackless Motorized Transfer Car

Four wheel steering trackless motorized transfer car is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. Four wheel steering trackless motorized ...
Product Introduction

Four wheel steering trackless motorized transfer car is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. Four wheel steering trackless motorized transfer car has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.



Wheels of steering trackless motorized transfer car:

The Four wheel steering trackless motorized transfer car wheels is LD. The LD wheel is a special wheel for crane. It is hardened as a whole. The bearing adopts a wheel and a bearing. After the wheel is assembled, it can rotate flexibly. There are two types of single rim and double rim.



The LD Four wheel steering trackless motorized transfer car wheel bearing is inside the wheel. When the wheel rotates, the shaft does not move. The LD wheel is not suitable for large tonnage. The LD wheel cannot be used for magnetically coupled cable drums. The insulation sleeve wears relatively quickly, so it is rarely used. Electric flat car for low-voltage tracks. The corner box wheel group also uses crane-specific wheels. It uses one wheel and two bearing seats. The wheels are single rims. After 4 wheels and 2 drives are assembled, they can rotate flexibly. The corner box wheel has a simple structure and a high load factor, but it is troublesome to adjust the wheel, the wheel is independent, and maintenance and repair are more convenient.



Model BWP-5t BWP-20t BWP-40t
Rated Load(t) 5 20 40
Max. Wheel Load (t) 2.8 5.6 10
Ground Requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50
Table Size (mm) 3000 X 2000 4500 X 2200 5500 X 2300
Height (mm) 450 600 700
Wheel Base (mm) 1500 1700 1800
Axles Distance (mm) 2500 3900 4800
Turning Radius (mm) 2501 3901 4801
Turning Structure Mechanical
Motor Power (KW) 3.5 7 12
Wheel Diameter (mm) 300 (4) 400 (4) 500 (6)
Wheel Material ZG55+hydropurture
Running Speed (m/min) 0-15 0-12
Brake Principle Electric magnetic brake
Operation Method Raido Remote Control
Radar Control 3-0.3 m, Automatic stop for obstacles
Warning Equipment Horn and Flash Light
Other Functions Turning light, night light and power display
