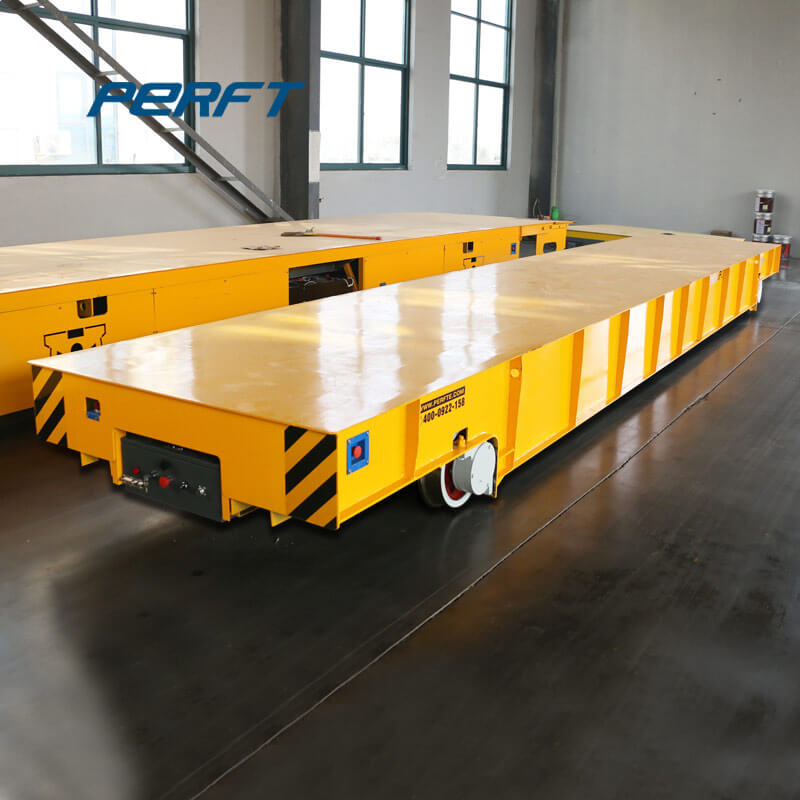

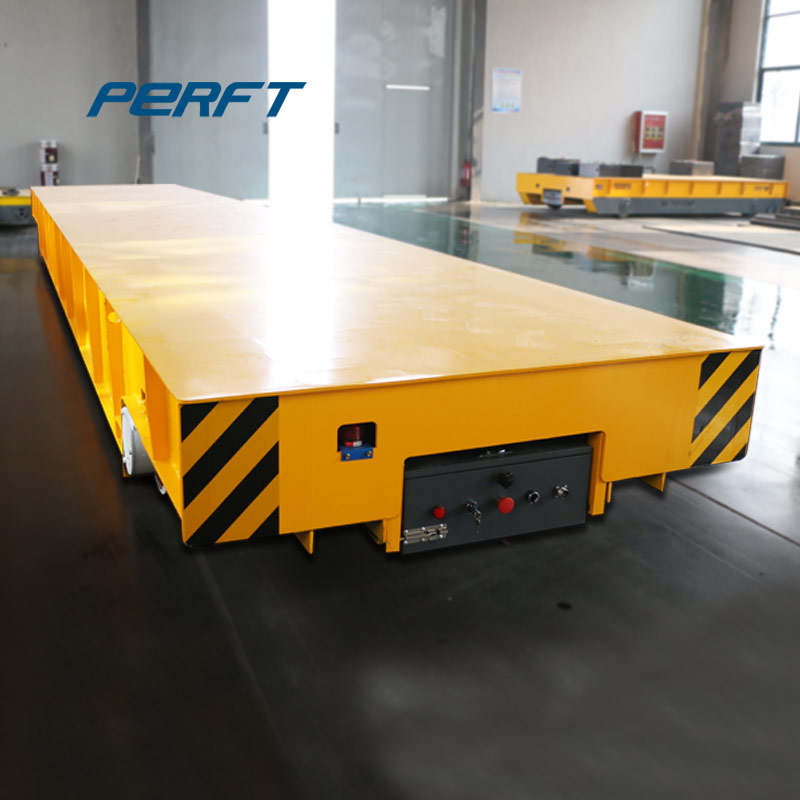

Cable Drum Powered Electric Industrial Traverser for Facility Assembly Line

Cable drum powered electric industrial traverser for facility assembly line is an electric material handling vehicle. The design of the carriage of the cable drum transmission platform is mainly us...
Product Introduction

Cable drum powered electric industrial traverser for facility assembly line is an electric material handling vehicle. The design of the carriage of the cable drum transmission platform is mainly used to handle large cables. The transfer platform cart can be designed according to the size of the large cable to facilitate the customer to transport the cable. The power supply mode of the vehicle is cable power supply. This power supply method is more environmentally friendly and can save usage costs.

Under normal circumstances, the car can be used for a long time without restriction, and has the advantages of large load and long service life. Since the power supply method of the vehicle uses cable power supply, and the cable is not limited by the use time, the loading and unloading efficiency of the vehicle is high. Whether in terms of price, or in terms of service life and cost-effectiveness.



Our line of Rail Flatbed Trolley is designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane. This type Electric Industrial Trolley is powered by the cable . It can be also powered by battery and low voltage rails. The powered source is depend on the running distance.



Application—-Cable Drum Powered Electric Industrial Traverser

The Cable Drum Powered Electric Industrial Traverser can be applied in assembly line(ring production line,  loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).

Model BJT-2t BJT-20t BJT-50t BJT-100t BJT-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance (m) 25 30 50 50 50
Recommended Rail Model P15 P24 P43 QU100 QU100
